Wall Mounting Bracket

BT7831

For Ø50mm Poles




Designed to mount Ø50mm poles onto walls, the BT7831 is ideal for installing flat screens and other AV equipment at locations where it is not possible to fix to the floor or ceiling (or both) or when there is a large section of wall behind the installation which is not strong enough to fix to.







BT7831 - Wall Mounting Bracket for Ø50mm Poles


  • Allows Ø50mm poles to be mounted vertically on to walls

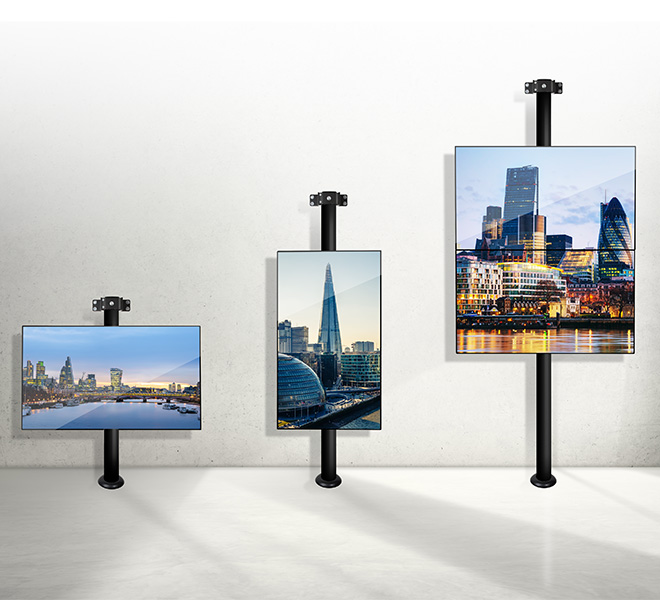

  • Ideal for use with B-Tech ceiling / floor mounts to create ceiling-to-wall or floor-to-wall installations
  • Heavy duty steel capable of supporting substantial loads
  • Supplied with safety bolt for secure installation
  • All mounting hardware included
  • Max Load: 150kg (330.7lbs)*
  • Use 2x BT7831 for a wall mounted pole installation
  • Use 1x BT7831 with a B-Tech ceiling / floor mount for a ceiling-to-wall or floor-to-wall installation
  • Distance from wall: 145mm (5.7") (113mm (4.4") to centre of pole)
  • Colour: Black

    *Max load can be increased when used as part of a floor to ceiling installation

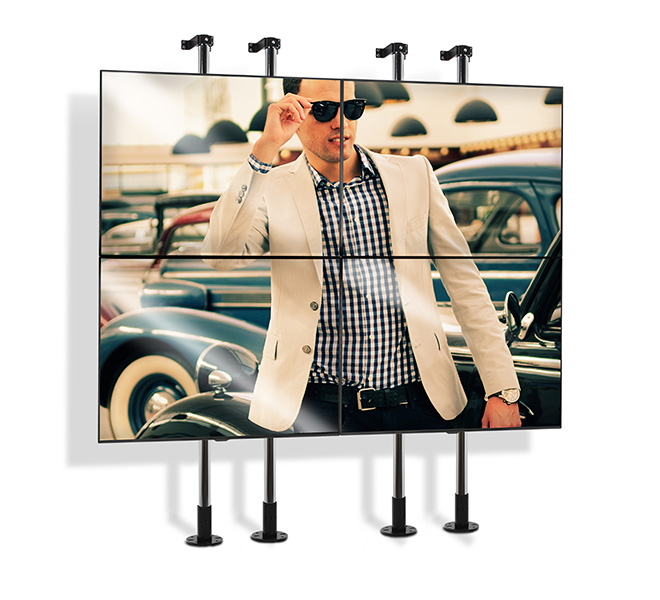

BT7831 - Wall Mounting Bracket for Ø50mm Poles BT731 - Compatible with B-Tech Ø50mm Poles BT7831 - Includes safety bolt and grub screws for extra safety BT7831 - Ideal for creating multi-screen pole mounted installations - such as video walls

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
