Universal Extra-Large Flat Screen Ceiling Mount

BT8448

Four ceiling drop lengths available




Designed to ceiling mount screens over 65", the BT8448 is an extra-large ceiling mount which is available with a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The twin pole design and heavy duty steel provides strength and rigidity, allowing for a maximum load of up to 130kg. Other great features include post installation screen alignment and height adjustment screws to help level the screen once mounted. Available with a choice of Black or Chrome poles.






  • Twin pole mount suitable for screens 65" and over
  • Heavy duty steel capable of supporting very heavy loads
  • Lateral adjustment of screen once mounted
  • Integrated cable management for a neat and tidy installation
  • Adjustment screws allow screen to be levelled once mounted
  • Simple ‘hook-on’ installation
  • Recommended screen size: 65" (165cm) - 120" (305cm)
  • Max load: 130kg (286lbs)
  • VESA® & non-VESA fixings: up to 1000mm x 600mm
  • Ceiling drop: 980mm (38.6"), 1480mm (58.2"), 1980mm (78") or 2980mm (117.3")*
  • Colour option (Ø50mm (2") poles): Black, White or Chrome
  • Colour option (ceiling plate): Black or White

    *To the centre of the interface mount

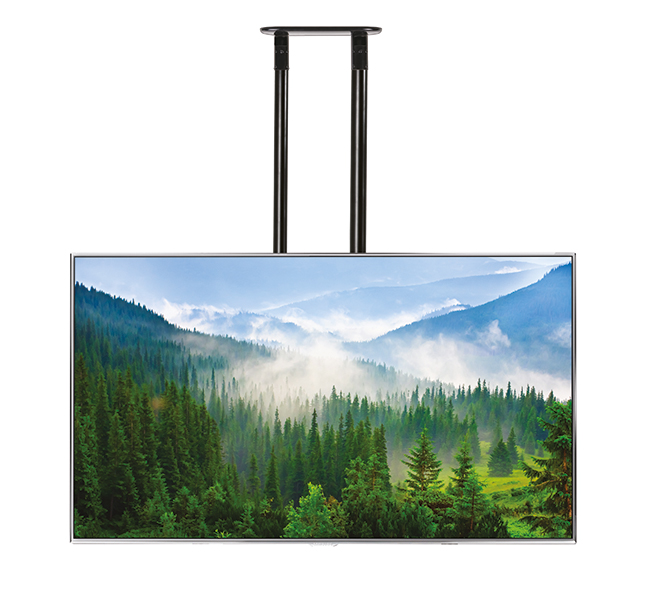

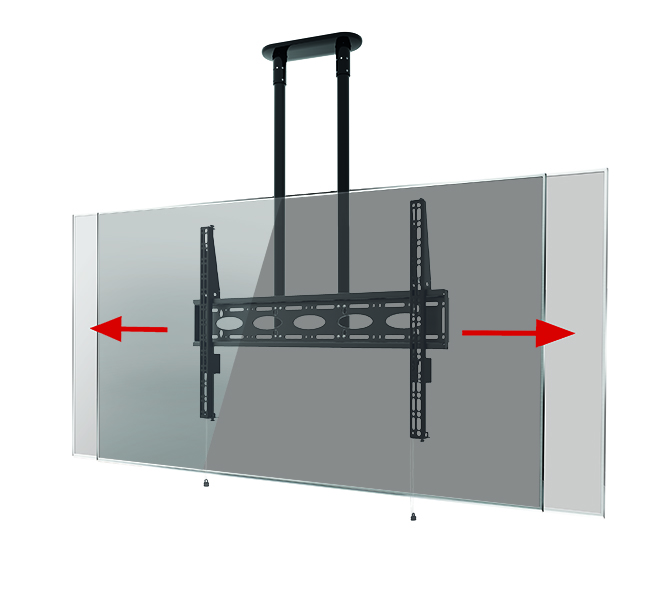

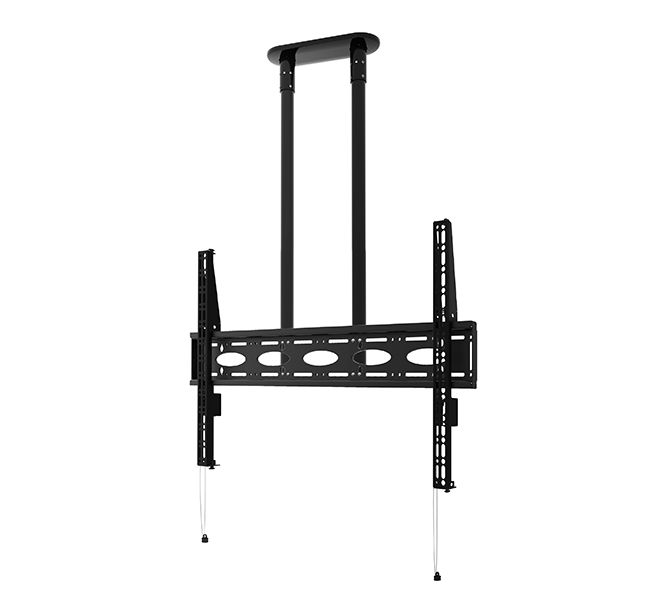

BT8448 - Extra-Large Flat Screen Ceiling Mount Available with a choice of three pole lengths: 1m, 1.5m or 2m Post installation screen alignment for perfect positioning every time BT8448 with Screen

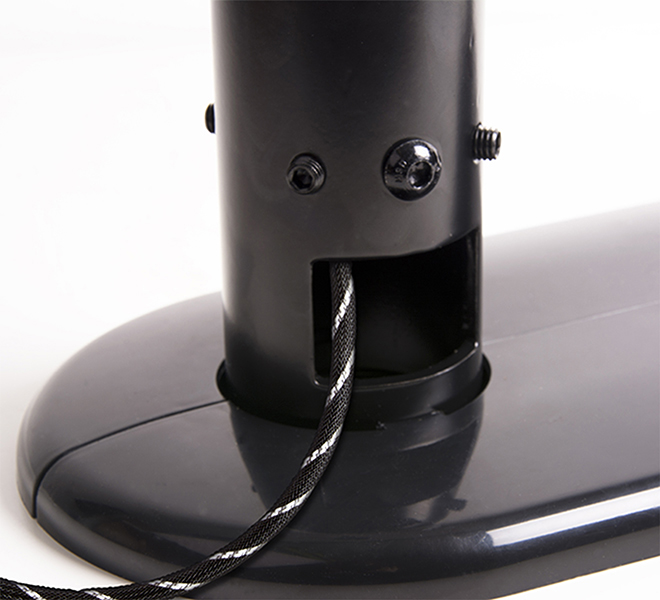

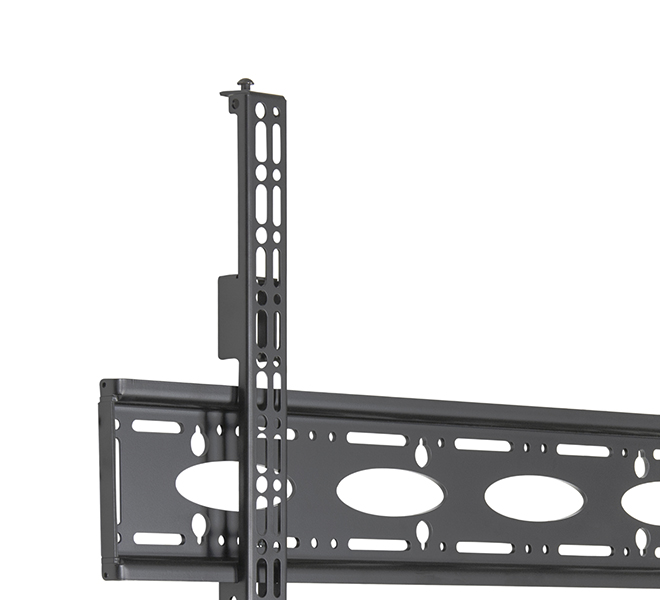

Adjustment screws allow screen to be levelled once mounted Integrated cable management for a neat and tidy installation White BT7807 and BT7850-100 with BT8448 and screen White BT7807 and BT7850-100 with BT8448

Product Specification Sheets

Specification Sheet (PDF)


Installation Guides

BT8448 Installation Guide (PDF)



Technical Drawings

BT8448-100 - Technical Drawing (PDF)

BT8448-100 - Technical Drawing (DXF)

BT8448-150 - Technical Drawing (PDF)

BT8448-150 - Technical Drawing (DXF)

BT8448-200 - Technical Drawing (PDF)

BT8448-200 - Technical Drawing (DXF)

You must log in to view this content
